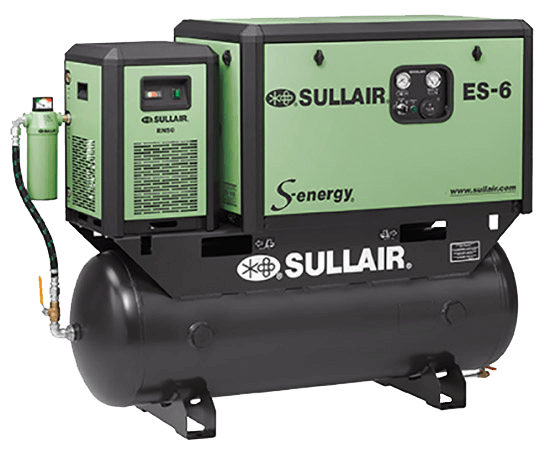

ES-6 S-energy® Rotary Screw Air Compressors

ES-6 compressors offer Sullair reliability in the most compact, most robust, most maintenance-friendly and quietest compressor package available on the market. Multiple features of the ES-6 Series revolutionize the compressor’s serviceability and provide for a cleaner, safer work environment and cost effective compressor. Standard maintenance can all be performed from one side.

Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us
ES-6 S-energy® Rotary Screw Air Compressors
CFM
CFM

Flow

13 – 36 cfm
.37-1.02 m³/min
Pressure
Pressure

Pressure

125 – 175 psi
8.6-12.1 bar
Horsepower
Horsepower

Power

5 – 10 hp
3.7 – 7.4 kw

  • 5, 7.5, and 10 hp (3.7, 5.5, and 7.4 kW)
  • Capacities from 13 to 36 acfm (.37 to 1.02 m3/min)
  • Pressures of 125 and 175 psig (8.6 and 12.1 bar)
  • High efficiency performance—designed for continuous duty
  • All functional components housed in an integrated unit
  • Multi-drive versions available
  • Motor voltages available include 200V, 230V, 460V, and 575V

  • Reliable Sullair air end
  • Small footprint
  • Encapsulated design
  • Multi-stage air-fluid separator
  • Integrated full voltage starter
  • Integrated aftercooler / oil cooler
  • Spin-on fiberglass fluid filter
  • Heavy-duty air filter
  • Bearing Fluid Reservoirs (BFRs)
  • Sullair’s Versatile Control System (VCS)
  • Flange-mounted motor and air end with Totally Enclosed Air Over (TEAO) motor enclosure
  • Fluid sight glass
  • Oil drain tube
  • Helical design drive gears for reduced thrust load and increased bearing life
  • Sullube®—non-varnishing, biodegradable compressor fluid

  • Sound enclosure
  • Tank mounting with dryer and filter
  • PristineFG™ food-grade fluid
