825 Portable Air Compressor

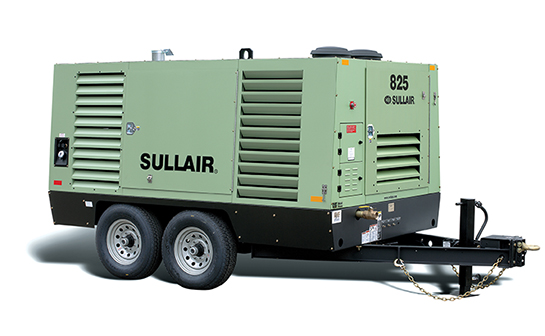

The Sullair 825 double axle rotary screw portable air compressor delivers 825 cfm. Enclosure is made of durable powder coated Galvanneal sheet metal. Other features include leaf spring suspension, wheel bearing grease fittings, and a lockable curbside instrument panel. The compressors feature a pneumatic inlet valve and 0 to 100% capacity control.

Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us
Portable 825
CFM
CFM

Flow

825 cfm
23 m³/min
Pressure
Pressure

Pressure

125 psi
9 bar
Horsepower
Horsepower

Power

300 hp
224 kw

  • Rotary screw compressor
  • Pneumatic inlet valve
  • 0 to 100% capacity control
  • COMPASS® Controller
  • Protective shutdown switches
  • Galvanneal sheet metal
  • Two-Stage air filters with safety element
  • Lockable service doors
  • Swing-Down cooler
  • AWF® Compressor Fluid
  • Complete fluid containment
  • Tail lights
  • Three mounting options
  • Less running gear
  • Wagon wheel
  • Mechanical parking brake
  • Tandem axle
  • Electric brakes
  • Mechanical parking brake
  • E-Z lube axle



  • Block heater
  • Special color paint
  • Surge hydraulic brakes
  • Aftercooler
  • Filtration for instrument quality air

Model Specifications



825 (T3)

ACTUAL DELIVERY - CFM( M3/MIN)

825 (23)

RATED PRESSURE - PSIG (BAR)

125 (9)

PRESSURE RANGE, MIN - PSIG (BAR)

80 (5.5)

PRESSURE RANGE, MAX - PSIG (BAR)

125 (9)

ENGINE MAKE & MODEL

CATC-9ATAAC (T3)

AVAILABLE POWER - BHP (KW)

300 (224)

FUEL TANK CAPACITY -GAL (L)

115 (435)

FUEL CONSUMPTION 100% LOAD - GPH (L/H)

12.2 (46.2)
